SETUP GUIDE

Shure BLX SM58 Wireless Microphone

A reliable wireless microphone system that delivers clear, professional sound, perfect for live performances and events.

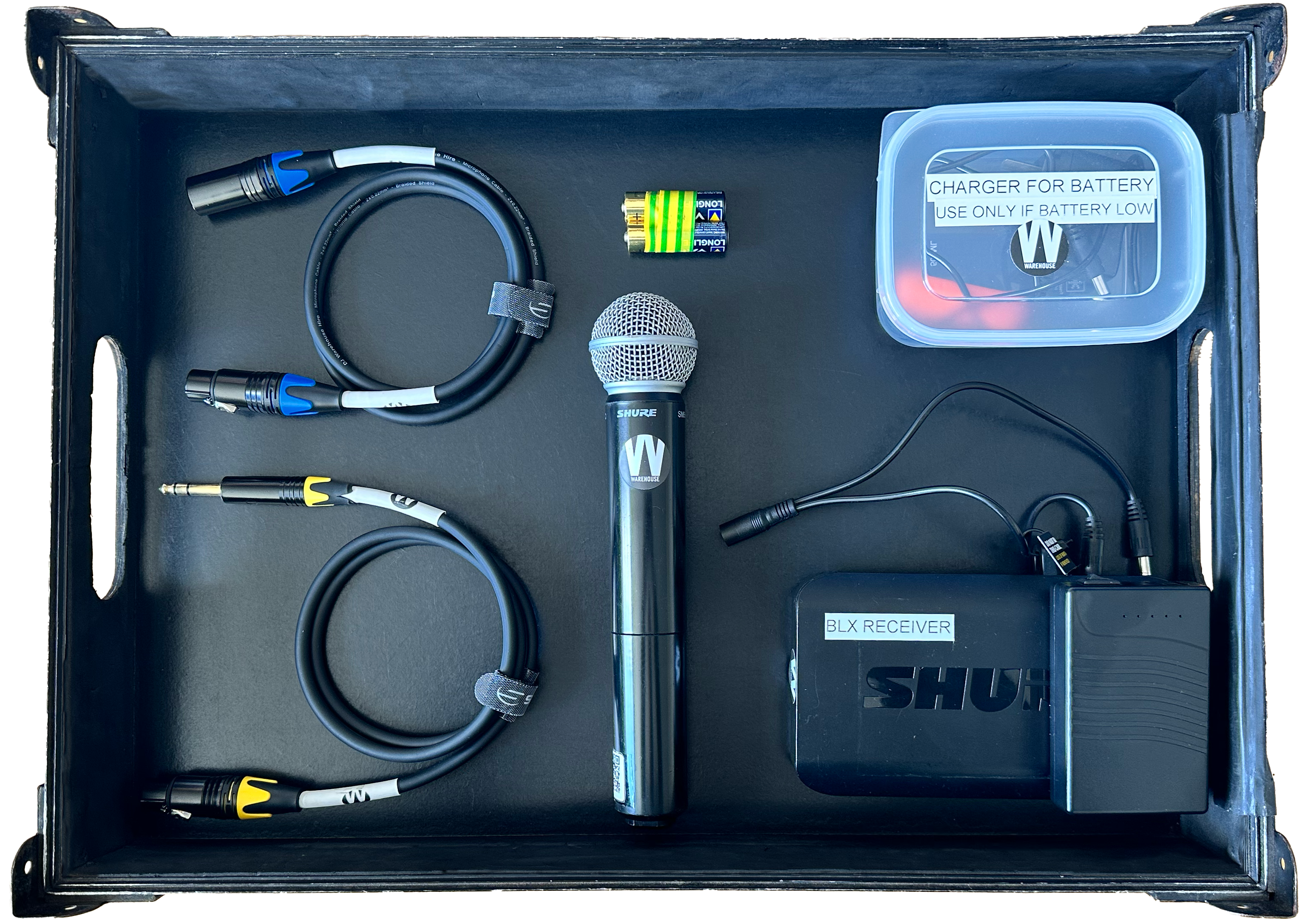

What's in the Box?

Shure Wireless Handheld Microphone

BLX-Series Handheld Wireless Microphone for Speeches, Announcements & Performances.

Wireless Receiver

Connect this to your mixer/speaker. Receives signal from the Microphone.

2 x Spare AA Batteries

For the handheld microphone. In case of emergencies.

Battery Pack

For the BLX Receiver (~8 hrs of battery life).

1 x Blue XLR Cable (1m)

Used to connect the receiver to a mixer or speaker.

1 x Yellow 1/4" TRS Cable (1m)

Only used when connecting the receiver to a mixer or speaker with a TRS input only.

Charging Cable

For the BLX Receiver Battery Pack.

Link Cable

Connects the Battery Pack to the Receiver.

How to Setup

STEP 1

Connect the Receiver

Connect one end of the BLUE XLR cable to the Receiver and connect the other end to the 'MIC' input on your speaker or mixer.

Turn the 'MIC' volume/gain up for testing later.

Connect one end of the BLUE XLR cable to the Receiver and connect the other end to the 'MIC' input on your speaker or mixer.

Turn the 'MIC' volume/gain up for testing later.

STEP 2

Power on the Receiver

Check that link cable is connecting the Battery Pack and Receiver.

Switch the Battery Pack on and then press and hold the power button on the Receiver for 1-2 seconds.

Check that link cable is connecting the Battery Pack and Receiver.

Switch the Battery Pack on and then press and hold the power button on the Receiver for 1-2 seconds.

STEP 3

Setup the Receiver

Press the 'Group' button to automatically scan for the best 'Group' frequency in your area.

Then press the 'Channel' button to automatically scan for the best 'Channel' frequency in your area.

Press the 'Group' button to automatically scan for the best 'Group' frequency in your area.

Then press the 'Channel' button to automatically scan for the best 'Channel' frequency in your area.

STEP 4

Pair the Microphone

Press and hold the Power button on the microphone until the green light turns on.

Unscrew the handle cover and press the Group button repeatedly until the letter displayed matches the ‘Group’ letter on the receiver.

Repeat this process with the Channel button until the number matches the ‘Channel’ number on the receiver.

When paired correctly, the 'Ready' light will activate on the Receiver and the 'Audio' light will blink when you speak into the Microphone.

Press and hold the Power button on the microphone until the green light turns on.

Unscrew the handle cover and press the Group button repeatedly until the letter displayed matches the ‘Group’ letter on the receiver.

Repeat this process with the Channel button until the number matches the ‘Channel’ number on the receiver.

When paired correctly, the 'Ready' light will activate on the Receiver and the 'Audio' light will blink when you speak into the Microphone.

STEP 5

Connecting Additional Microphones

If you are using more than one microphone (leaving your setup microphone/s ON) repeat Steps 1-4 for each additional microphone.

Note:

  • A maximum of 12 BLX microphones can be used concurrently.
  • Each Microphone must be set to a unique Group/Channel to avoid interference.

If you are using more than one microphone (leaving your setup microphone/s ON) repeat Steps 1-4 for each additional microphone.

Note:

  • A maximum of 12 BLX microphones can be used concurrently.
  • Each Microphone must be set to a unique Group/Channel to avoid interference.

Troubleshooting

Experiencing issues? Check the FAQ below:

The light on the Microphone is RED

If the LED on the Microphone is solid or flashing RED this indicates that the battery is low. Remove the handle cover and replace the AA batteries with the spare batteries (provided).

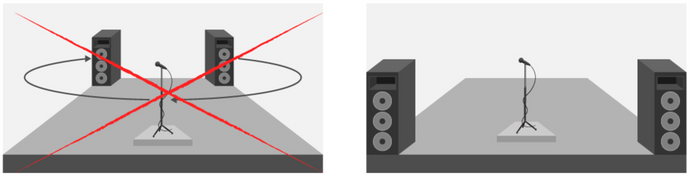

I'm experiencing signal feedback

Avoid positioning/using the microphone in front of sound systems to minimise the opportunity for signal feedback.

I'm experiencing signal dropouts/issues

If you're experiencing signal interference, try each of the following steps:

  • Repeat Steps 3 and 4 to find a new frequency
  • Reposition the Receiver so there is nothing obstructing a line of sight to the Microphone (including the audience)
  • Avoid placing Receiver and Microphone where metal or other dense materials may be present
  • If possible, remove nearby sources of wireless interference, such as mobile phones, computers and other Wi-Fi devices.
  • Replace the Microphone AA batteries
The Receiver will not turn on

Try the following steps (in order):

  • Ensure the Battery Pack is switched on and that all (5) green status lights are lit.
  • Ensure that the link cable is connecting the Battery Pack and the Receiver
  • Plug the Charging Cable into a power point and connect to the Link Cable.
  • If none of these steps work contact our support team.
The Microphone will not turn on

If the Microphone is not turning on, try holding the power button longer.

If this does not work, unscrew the handle cover and replace the AA batteries using the spares (provided).

If you're still having trouble, contact our support team.
