SETUP GUIDE

Light-Up Dancefloor

A colour-changing dance floor that instantly lifts the energy of any party or event.

What's in the Box?

Dancefloor Panels

50cm x 50cm panels - either Frosted or Infinity depending on your selection.

Control Device

Includes an app that allows you to control the mode, colour, speed and brightness of the panels. This device will be paired to your panels in advance.

Corner Ramps (optional)

To bridge the corner gaps between edge ramps.

Side Ramps (optional)

Provides a bevelled edge to the dancefloor panels.

Control Ramps

Responds to the smartphone device to control and power the dancefloor panels.

How to Setup

STEP 1

Power on and place the Control Ramps

  1. Power on each Control Ramp by flicking the two switches located on one side

  2. Place each Control Ramp side-by-side to form one edge of your dancefloor

  1. Power on each Control Ramp by flicking the two switches located on one side

  2. Place each Control Ramp side-by-side to form one edge of your dancefloor

STEP 2

Position the Panels

⚠️ IMPORTANT ⚠️

  • Each Panel has two plain sides and two sides marked with “OUT ← IN”

  • Only the plain sides can connect to the Control Ramp

  • The arrows on the “OUT ← IN” sides must point AWAY from the Control Ramp
  1. Place your first Panel down until it magnetically connects to the first Control Ramp

  2. Connect all remaining Panels ensuring that the arrows of all Panels are pointing AWAY from the Control Ramps

⚠️ IMPORTANT ⚠️

  • Each Panel has two plain sides and two sides marked with “OUT ← IN”

  • Only the plain sides can connect to the Control Ramp

  • The arrows on the “OUT ← IN” sides must point AWAY from the Control Ramp
  1. Place your first Panel down until it magnetically connects to the first Control Ramp

  2. Connect all remaining Panels ensuring that the arrows of all Panels are pointing AWAY from the Control Ramps

STEP 3

Position the Ramps (optional)

  1. Slot a Corner Ramp into one of your Control Ramps

  2. Slot a Side Ramp into the Corner Ramp and magnetically connect it to the adjacent Panel

  3. Repeat this for all remaining Side and Corner Ramps
  1. Slot a Corner Ramp into one of your Control Ramps

  2. Slot a Side Ramp into the Corner Ramp and magnetically connect it to the adjacent Panel

  3. Repeat this for all remaining Side and Corner Ramps

STEP 4

Setup the Transmitter

  1. Place the battery on the transmitter

  2. Plug the transmitter into the battery

  3. Switch both the battery and the transmitter on

  4. Stand both antennae upright on the tray
  1. Place the battery on the transmitter

  2. Plug the transmitter into the battery

  3. Switch both the battery and the transmitter on

  4. Stand both antennae upright on the tray

STEP 5

Open app on device

  1. Locate the control device provided with the dancefloor

  2. Open the Eseeker application

  3. Select 'Groups'

  4. Tap 'Your Dancefloor'
  1. Locate the control device provided with the dancefloor

  2. Open the Eseeker application

  3. Select 'Groups'

  4. Tap 'Your Dancefloor'
Select a mode

Adjust the brightness and speed of any of the modes below to suit your event.

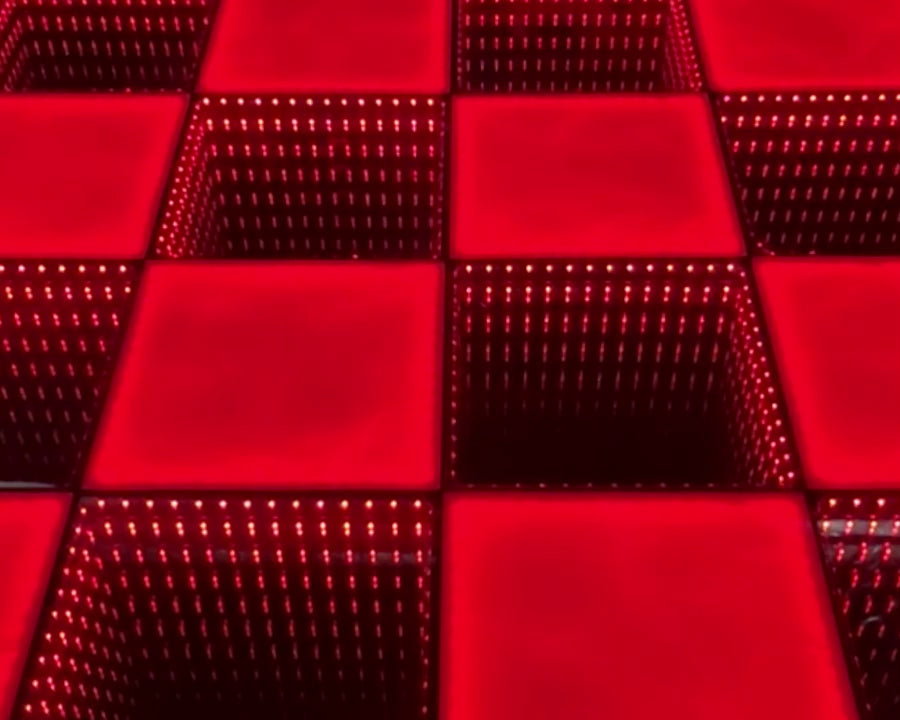

Static

A static preset or any colour you choose

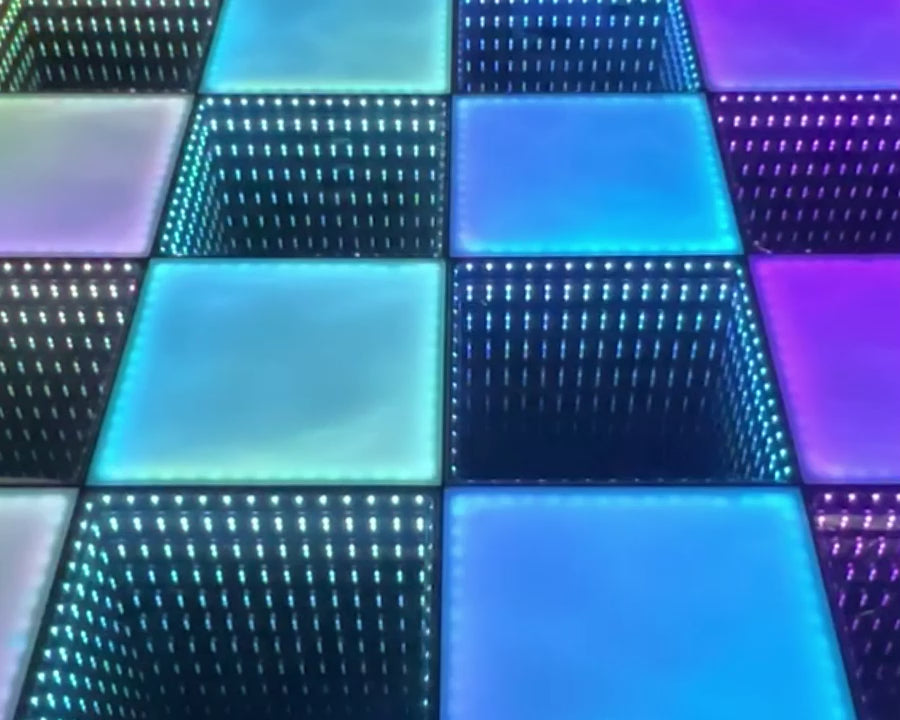

Swirling

Lights swirl in a circular motion as they transition between colours

Fading

Smoothly transitions between different colours

Running

Lights chase each other in a continuous motion

Flowing

Smoothly transitions between colours with a flowing motion

Pulsing

Slowly lights up, then fades out

Bouncing

Lights converge, collide, then reverse direction

STEP 6

Setting a Static Colour

  1. In the main menu, tap 'Colour' (the mode 'IPL' will be selected by default)

  2. Use the colour picker to create a custom colour


To adjust Brightness:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  1. In the main menu, tap 'Colour' (the mode 'IPL' will be selected by default)

  2. Use the colour picker to create a custom colour


To adjust Brightness:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

⚠️ Important

Static White uses more power than other colours.

If using Static White, we strongly recommend preserving power before your event (see instructions below) and/or reducing brightness to extend battery life.

STEP 6

Setting to Swirling mode

  1. In the main menu, tap 'Impromptu'

  2. In the list of modes, tap options 9-16 to view different Swirling modes

  3. Once your preferred mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed
  1. In the main menu, tap 'Impromptu'

  2. In the list of modes, tap options 9-16 to view different Swirling modes

  3. Once your preferred mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed

STEP 6

Setting to Fading mode

  1. In the main menu, tap 'Impromptu'

  2. In the list of modes, tap option 8 to enable Fading mode

  3. Once Fading mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed
  1. In the main menu, tap 'Impromptu'

  2. In the list of modes, tap option 8 to enable Fading mode

  3. Once Fading mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed

STEP 6

Setting to Running mode

  1. In the main menu, tap 'Picture'

  2. In the list of modes, tap options 1-6, 8-19 to view different Running modes

  3. Once your preferred mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed
  1. In the main menu, tap 'Picture'

  2. In the list of modes, tap options 1-6, 8-19 to view different Running modes

  3. Once your preferred mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed

STEP 6

Setting to Flowing mode

  1. In the main menu, tap 'Picture'

  2. In the list of modes, tap option 7 to select Flowing mode

  3. Once Flowing mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed
  1. In the main menu, tap 'Picture'

  2. In the list of modes, tap option 7 to select Flowing mode

  3. Once Flowing mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed

STEP 6

Setting to Pulsing mode

  1. In the main menu, tap 'Impromptu'

  2. In the list of modes, tap options 1-7 to view different Pulsing modes

  3. Once your preferred mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed
  1. In the main menu, tap 'Impromptu'

  2. In the list of modes, tap options 1-7 to view different Pulsing modes

  3. Once your preferred mode is selected, adjust the brightness and speed of the effect

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed

STEP 6

Setting to Bouncing mode

  1. In the main menu, tap 'Impromptu'

  2. Scroll the list of modes and tap 'Breathing (with black)' or 'Breathing (no black)'

  3. Choose a colour option from the list and tap to select

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed
  1. In the main menu, tap 'Impromptu'

  2. Scroll the list of modes and tap 'Breathing (with black)' or 'Breathing (no black)'

  3. Choose a colour option from the list and tap to select

To adjust Brightness and Speed:

  1. Tap 'Settings' (in the top right hand corner)

  2. Adjust the 'Luminance' slider to change the brightness

  3. Adjust the 'Speed gear' slider to change the speed

Need to save power?

Preserving battery life

Once the dancefloor is set up, you may want to preserve battery power before your event begins.


To Preserve Battery Life:

  1. Disconnect all control ramps from the panels.

  2. Turn both switches on the control panels OFF.

  3. When you're ready to start the event, turn both switches back on and reconnect all control panels.

  4. When turned back on and reconnected, the dancefloor resumes the last mode selected

Once the dancefloor is set up, you may want to preserve battery power before your event begins.


To Preserve Battery Life:

  1. Disconnect all control ramps from the panels.

  2. Turn both switches on the control panels OFF.

  3. When you're ready to start the event, turn both switches back on and reconnect all control panels.

  4. When turned back on and reconnected, the dancefloor resumes the last mode selected
