SETUP GUIDE

Chroma Light

Bright and versatile for uplighting large walls to tree canopies or as a discreet spotlight.

What's in the box?

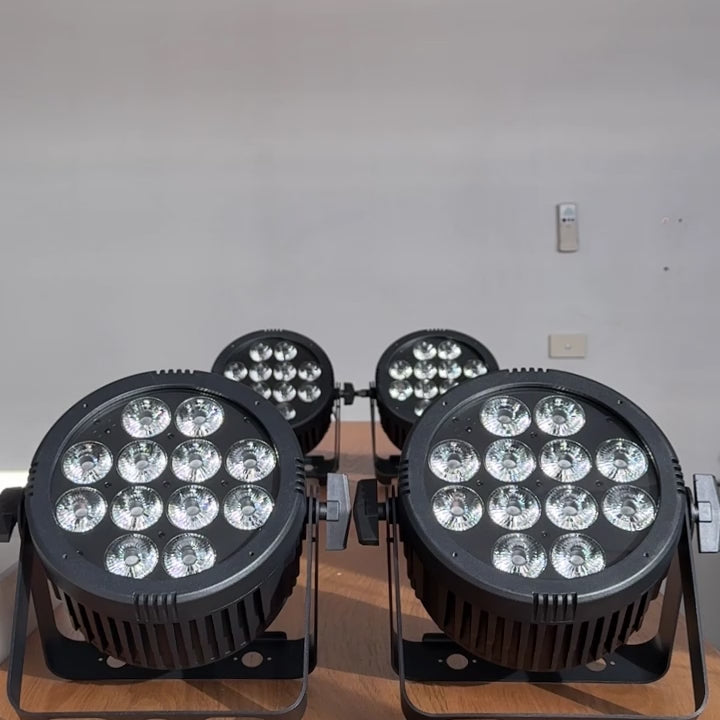

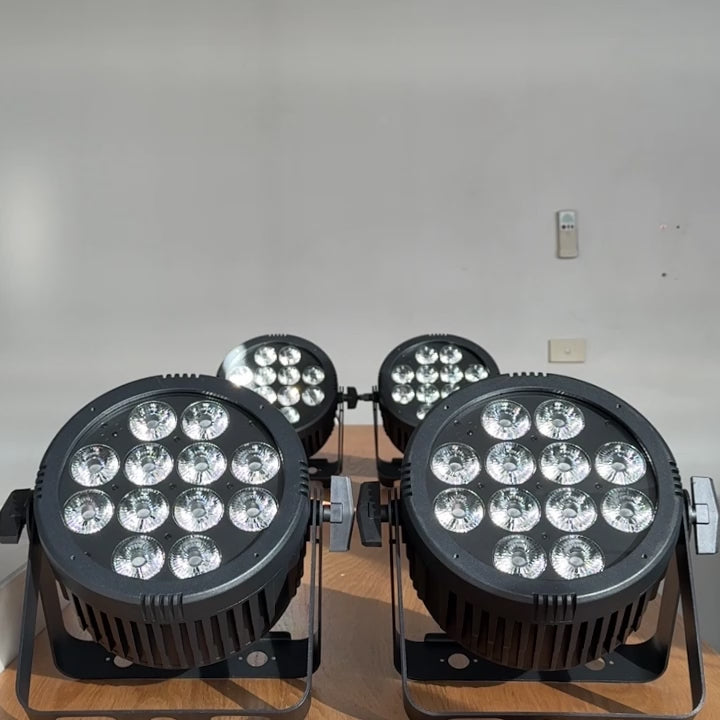

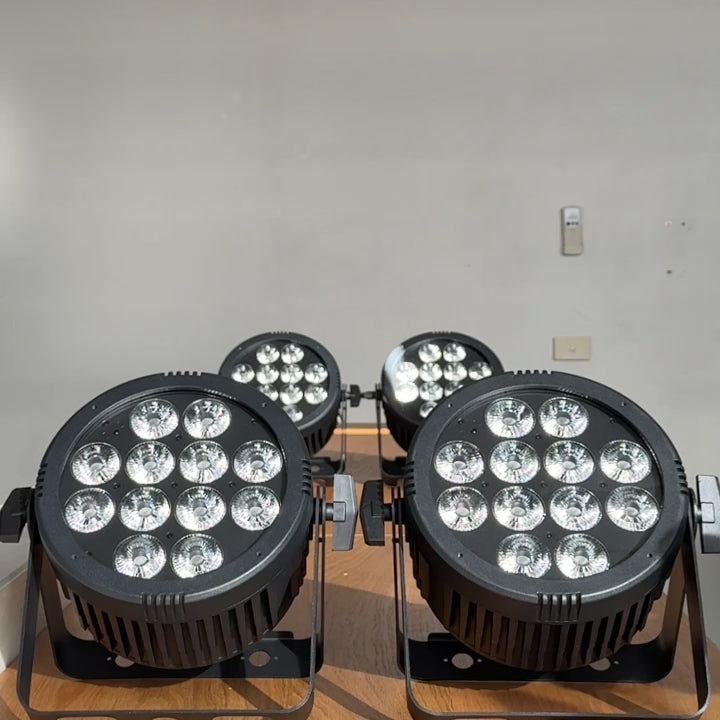

Chroma Uplight

2 x Chroma Uplights

Charging Cables

2 x Truecon Power Cables (1m)

1 x Wireless Remote

Used to control both lights

How to Setup

STEP 1

Unplug and power on the lights

  1. Lift the silver lock and twist the charging cable connector counter-clockwise to unplug it.

  2. Replace the waterproof plug and press in firmly.

  3. Press and hold the POWER button for 3 seconds until the display screen turns on.

  4. Repeat for each light.
  1. Lift the silver lock and twist the charging cable connector counter-clockwise to unplug it.

  2. Replace the waterproof plug and press in firmly.

  3. Press and hold the POWER button for 3 seconds until the display screen turns on.

  4. Repeat for each light.
How do you want to control the lights?

Control one light at a time

Set each light individually using the remote.

Control all lights together

Set all lights at once with a single press of the remote.

Control groups of lights

Create groups of lights that can be controlled separately.

Select a mode

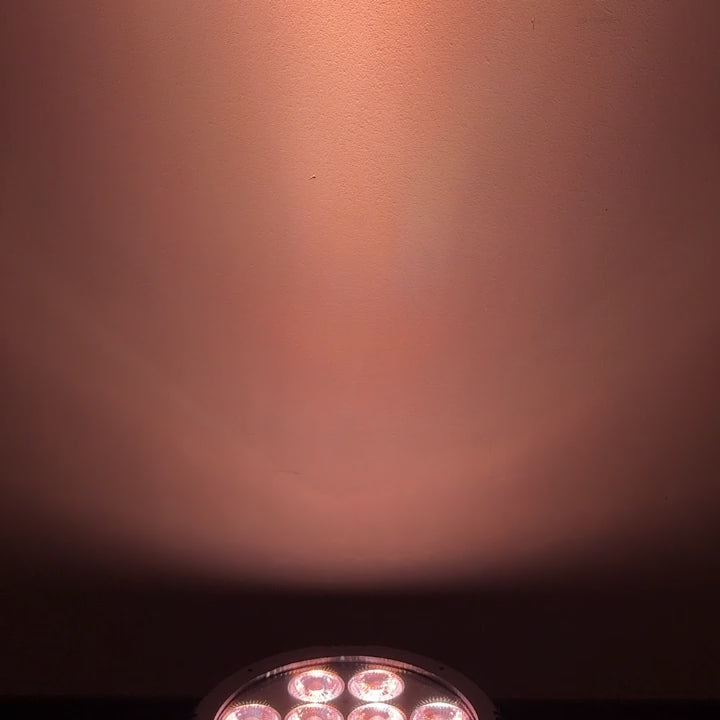

Static

displays one solid, unchanging colour

Fade

smoothly transitions between colours

Snap

rapidly cycles through colours

Strobe

rapidly blinks on and off - single colour

Sync the lights

Once all of the lights are turned on:

  1. Press MENU until you reach Wireless DMX (this should be set to ON by default).

  2. Hold ENTER for 2 seconds and the mode will display as RD.

  3. Press UP or DOWN to change the mode to GZ, then press ENTER.

  4. Confirm the GROUP ID is set to 1.

  5. Press MENU until the screen displays ADDRESS 001.

  6. Repeat these steps for each light.

Once all of the lights are turned on:

  1. Press MENU until you reach Wireless DMX (this should be set to ON by default).

  2. Hold ENTER for 2 seconds and the mode will display as RD.

  3. Press UP or DOWN to change the mode to GZ, then press ENTER.

  4. Confirm the GROUP ID is set to 1.

  5. Press MENU until the screen displays ADDRESS 001.

  6. Repeat these steps for each light.

Choosing a 'Primary' light

  1. Select a PRIMARY light (adjusting the primary light will control all other lights).

  2. Hold the remote 5cm from the primary light.

  3. Press a COLOUR button on the remote.

  4. All lights should change to match the colour selected.

  1. Select a PRIMARY light (adjusting the primary light will control all other lights).

  2. Hold the remote 5cm from the primary light.

  3. Press a COLOUR button on the remote.

  4. All lights should change to match the colour selected.
Select a mode

Static

displays one solid, unchanging colour

Fade

smoothly transitions between colours

Snap

rapidly cycles through colours

Strobe

rapidly blinks on and off - single colour

Syncing the first group

Once all of the lights are turned on:

  1. Press MENU until you reach Wireless DMX (this should be set to ON by default).

  2. Hold ENTER for 2 seconds and the mode will display as RD.

  3. Press UP or DOWN to change the mode to GZ, then press ENTER.

  4. Confirm the GROUP ID is set to 1.

  5. Press MENU until the screen displays ADDRESS 001.

  6. Repeat these steps for all lights in the first group.

Once all of the lights are turned on:

  1. Press MENU until you reach Wireless DMX (this should be set to ON by default).

  2. Hold ENTER for 2 seconds and the mode will display as RD.

  3. Press UP or DOWN to change the mode to GZ, then press ENTER.

  4. Confirm the GROUP ID is set to 1.

  5. Press MENU until the screen displays ADDRESS 001.

  6. Repeat these steps for all lights in the first group.

Syncing additional groups

  1. Press MENU until you reach Wireless DMX (this should be set to ON by default).

  2. Hold ENTER for 2 seconds and the mode will display as RD.

  3. Press UP or DOWN to change the mode to GZ, then press ENTER.

  4. Press ENTER again to activate GROUP selection.

  5. Press UP to select GROUP 2 and press ENTER to confirm the selection.

  6. Press MENU until the screen displays ADDRESS 001.

  7. Repeat for all other lights in the second group.

  8. Repeat this process for any additional groups (up to 7 groups in total).
  1. Press MENU until you reach Wireless DMX (this should be set to ON by default).

  2. Hold ENTER for 2 seconds and the mode will display as RD.

  3. Press UP or DOWN to change the mode to GZ, then press ENTER.

  4. Press ENTER again to activate GROUP selection.

  5. Press UP to select GROUP 2 and press ENTER to confirm the selection.

  6. Press MENU until the screen displays ADDRESS 001.

  7. Repeat for all other lights in the second group.

  8. Repeat this process for any additional groups (up to 7 groups in total).

Testing the sync

  1. Select ONE primary light from EACH group (the primary light from each group will control all other lights in their groups).

  2. Hold the remote 5cm from Group 1's primary light.

  3. Press a COLOUR button on the remote.

  4. All lights in Group 1 should change to match the colour selected.

  5. Repeat this test on the primary light for any other groups.

  6. For all following steps, only use the remote with the PRIMARY light you have selected for each group.

  1. Select ONE primary light from EACH group (the primary light from each group will control all other lights in their groups).

  2. Hold the remote 5cm from Group 1's primary light.

  3. Press a COLOUR button on the remote.

  4. All lights in Group 1 should change to match the colour selected.

  5. Repeat this test on the primary light for any other groups.

  6. For all following steps, only use the remote with the PRIMARY light you have selected for each group.
Select a mode

Static

displays one solid, unchanging colour

Fade

smoothly transitions between colours

Snap

rapidly cycles through colours

Strobe

rapidly blinks on and off - single colour

STEP 2

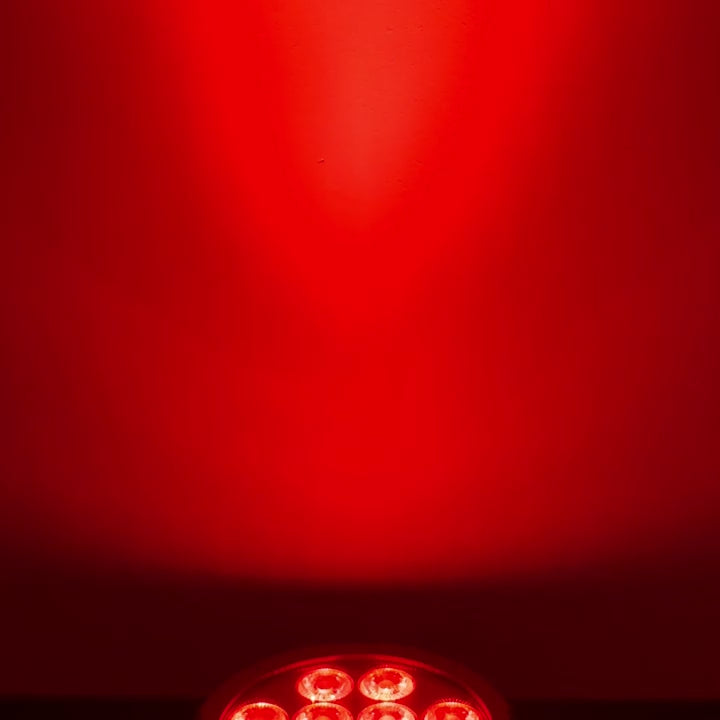

Setting a static colour

  1. Hold the remote 5cm away from the light and select the desired colour using the wireless remote.

  2. Adjust the brightness using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.
  1. Hold the remote 5cm away from the light and select the desired colour using the wireless remote.

  2. Adjust the brightness using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.

STEP 2

Setting to Fade mode

  1. Hold the remote 5cm away from the light and select the desired colour using the wireless remote.

  2. Adjust the effect speed using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.
  1. Hold the remote 5cm away from the light and select the desired colour using the wireless remote.

  2. Adjust the effect speed using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.

STEP 2

Setting to Snap mode

  1. Hold the remote 5cm away from the light and select the AUTO button using the wireless remote.

  2. Adjust the effect speed using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.
  1. Hold the remote 5cm away from the light and select the AUTO button using the wireless remote.

  2. Adjust the effect speed using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.

STEP 2

Setting to Strobe mode

  1. Hold the remote 5cm away from the light and select the Strobe button on the wireless remote.

  2. Adjust the effect speed using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.
  1. Hold the remote 5cm away from the light and select the Strobe button on the wireless remote.

  2. Adjust the effect speed using the UP and DOWN buttons.

  3. If controlling each light individually, repeat this process for all remaining lights.

    If controlling all lights or groups of lights, only perform this step with the PRIMARY light for each group.

STEP 3

Position each light

  1. Loosen the bracket knobs to tilt the light to your preferred angle.

  2. Position the light close to a wall or surface to achieve your desired look.

  3. Tighten the bracket knobs to fasten the light to your preferred angle.
  1. Loosen the bracket knobs to tilt the light to your preferred angle.

  2. Position the light close to a wall or surface to achieve your desired look.

  3. Tighten the bracket knobs to fasten the light to your preferred angle.
